Thermal nsulating glass, Low-E insulating glass have been widely used for commerical refrigeration.

All of our insulated glass panels applied for commercial refrigeration have high performance WARM EDGE Technology– Energy star product.

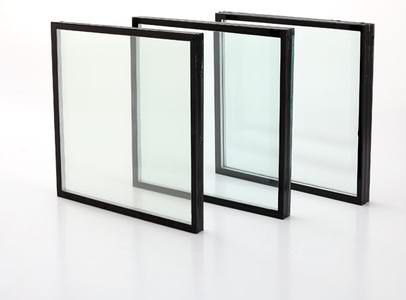

Our insulating glass unit specification:

Maximum size: 3660*2440mm

Minimum size: 300*300mm

Insulating glass thickness range: 10-60mm

Flat glass thickness range:4-19mm

Spacers: 6.4mm, 9.5mm, 12.7mm, 14.3mm,15.9mm,

Second sealing: hot melt butyl sealant

Gas: argon

Low-E glass , heated glass , flat heated glass, curved heated glass all available.



What is warm edge technology and what is the super performance on energy-saving than metal spacer (aluminum spacer）?

Different from traditional metal edge, the spacer is without metal, we call it warm edge. Well, when we choose insulated glass units, coefficient of heat transfer and glass durability become main factors to be considered.

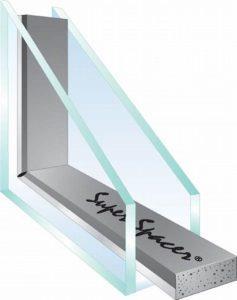

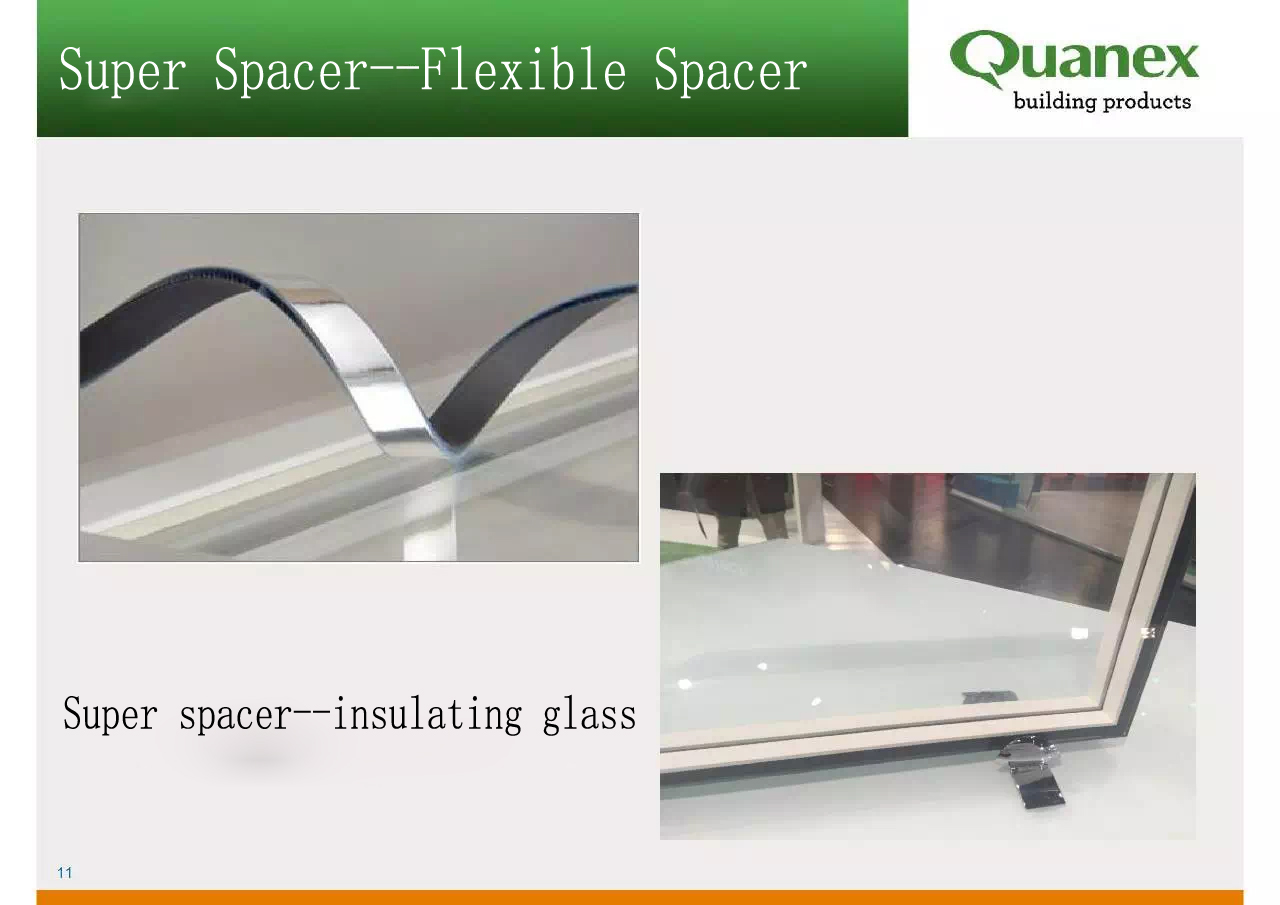

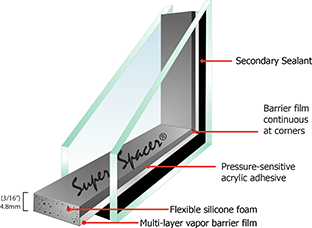

Super spacer has really super performance on both factors. Super Spacer is a true dual seal warm edge spacer system that uses a high-performance acrylic adhesive for its structural seal, backed by a moisture vapor seal. It is the true warm spacer without any metal but with desiccant. You can get more details from https://www.youtube.com/watch?v=kPCK2_tr4G0

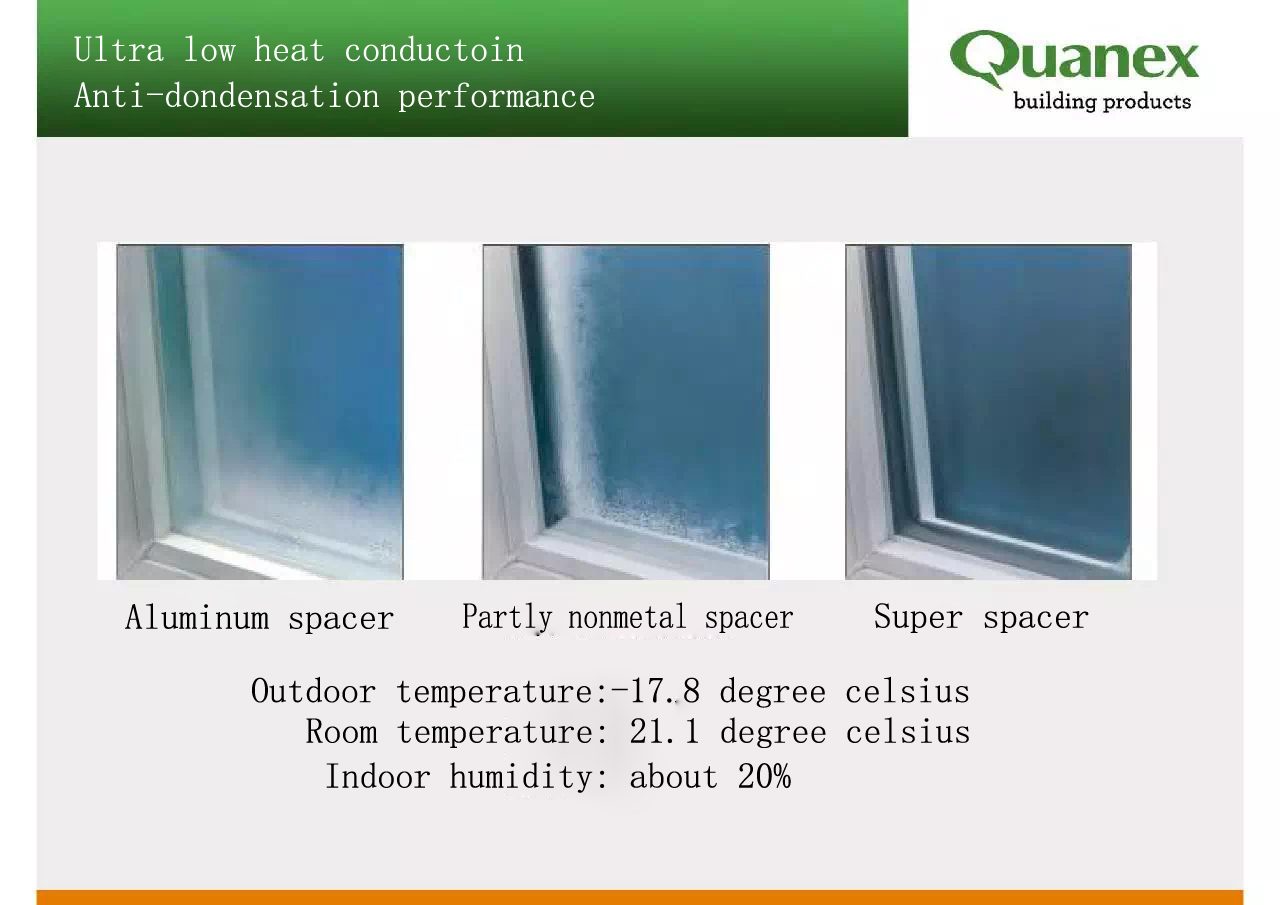

Heat conduction value of Super spacer in only 0.168W/m2·K, which is 1/950 of aluminum spacer, 1/85 of stainless steel spacer.  The K value of super spacer insulated glass unit can be reduced 0.6-0.8W/m2·K than that of aluminum spacer type insulated glass panels.

So for construction, in winter, it can keep your home warm and in summer, keep your home cool. For refrigeration cabinets, it can block the outside hot air in and keep the cold air inside of the cabinets to get excellent energy-saving purpose.

We have professional modern  production line ,only to manufacture super spacer type insulated glass panels.



Applications:

The insulated glass unit is widely used in glass curtain walls, doors, windows and area with glass in automobile, ships, aircrafts, instruments，and Refrigerator freezer
