Walk In Cooler , Walk In Glass Door Cooler for grocery &convenience store, gas stations
walk in cooler for convenience store
Description:

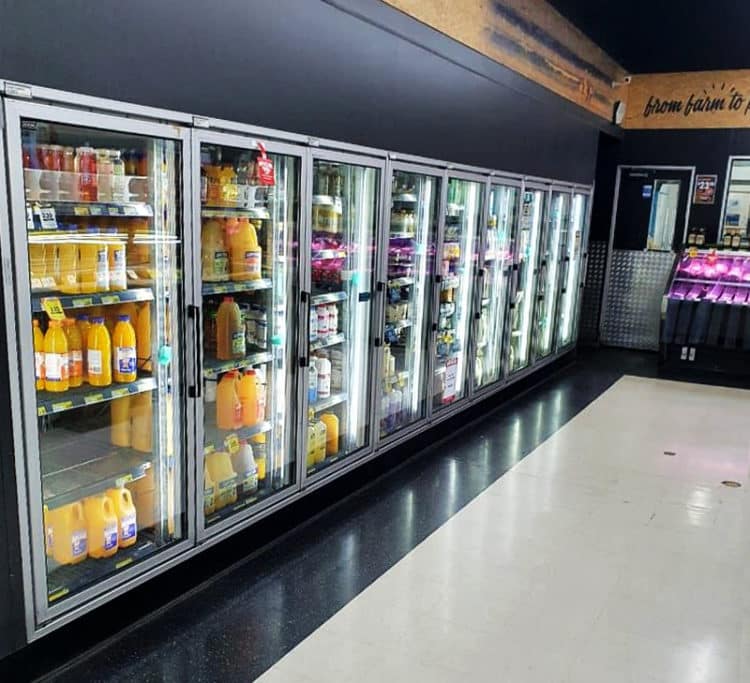

In gas stations, convenience stores, and liquor stores. Display Walk in coolers have been widely used. These coolers can meet both display and storage purposes. Front with glass door for displaying, while back with shelving for goods storage, side with an access door for employess access to inventory. Most of them have been used for displaying dairy, drinks, liquor, grab & go food,etc. Grocery and Convenience Store Walk-In coolers are made to order to fit your business’ exact needs and requirements.
As convenience store is charactered with small space, display walk in coolers with 3 doors /4 doors/ 5 doors/6 doors are most popular.
Features:
100mm polyurethane insulation with less heat leak into cold room
Heated & non heated glass door both available
Aluminum extrusion Full length handle, robust & long life
Specially designed shelving system with different angels adjustable
Double glass panel for cool room, triple glass panel for freezer cold room
Aluminum Gravity sheet available
Technical Parameters for 3/4/5 door walk in cooler&freezer:
Model
Dimension(mm)
Display Area(m²)
Volume (m³)
Temperature(℃)
Outdoor Unit
280/3D
2800*2000*2300
2.65
10
+2～+8
Copeland/Bitzer
350/4D
3500*2000*2300
3.54
12
-18～-25
430/5D
4300*2000*2300
4.43
15

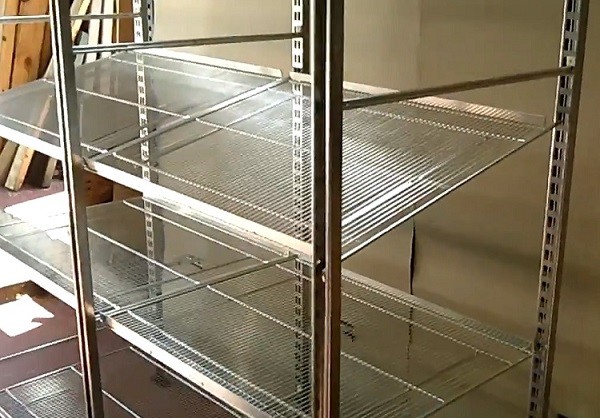

Shelving system:
Four Post Shelving System
Heavy duty construction
Very easy shelf height and angle adjustment to get slanted shelving
105Kg safe load capacity per shelf
500Kg safe load capacity per bay
Corrosive resistant components
Zinc or powdercoated black over zinc plating
Product stop to front and rear of each shelf as standard
Adjustable post feet
Scanstrip (price ticket strip) available in black or clear
Standard post height is 2050mm including adjustable post feet
Extra height post for use as roof support are available
Flexibility allowing height and angle adjustability and gravity feed
Many shelving sizes available to suit your different DISPLAY purpose
Pu panels:
Panel Thickness: 75mm/100mm for cooler, 100mm/150mm for freezer
Surface of Panels: 0.5mm/0.6mm thickness Embossed Aluminum Stucco Steel Sheet/ 304 stainless steel sheet/PPGI
Panel Available Width: 500mm – 1000mm
Panel Available Length: 2000mm-12000mm
PU Foam Density: 42 KGS/M3
Cubic Area Change: ≤1% (-30 C-100 C/96h)
Fire Rating: B2
Heat Transfer Quotients: ≤0.022 W/M2*K
Pressure: ≥0.10Mpa
Condensing unit:
We use application software to calculate cooling capacity and select the models of compressor,expansion valve and evaporator.
Compressor brands we mainly cooperate with: Bitzer, Copeland.
FAQ:
When selecting a walk-in cooler or freezer for a business, what important aspects you will need to consider ?
IT is important to consider all aspects of the cooler or freezer’s design, including the condensing unit, insulation system, climate control, air circulation, light system and shelving system. This will ensure that the cooler or freezer is able to maintain desired temperatures, conserve energy, and increase efficiency in the workplace.
