Supermarket Refrigeration

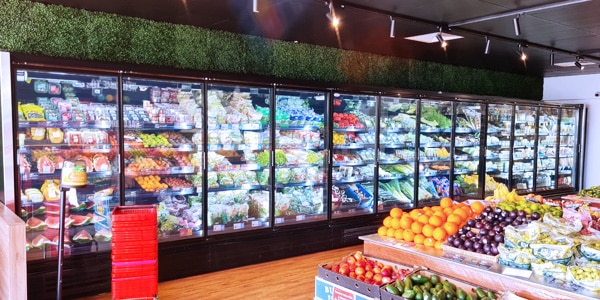

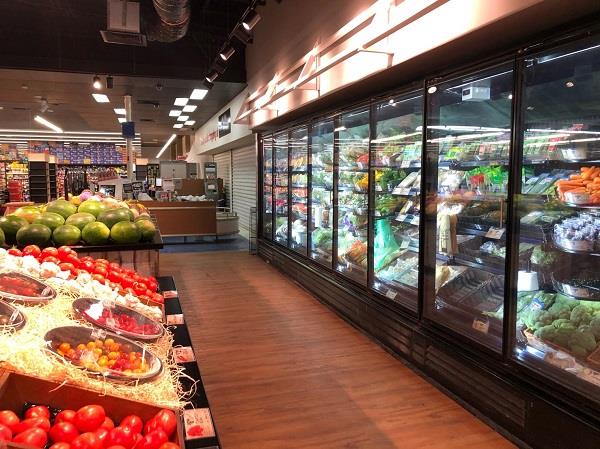

ART Refrigeration manufactures supermarket refrigeration equipments  which include reach-in glass door cooler&freezer，glass door merchandiser  for both remote and self contained type .  Our supermarket refrigeration equipment has been widely used in supermarkets, hypermarkets, grocery shopes, convenience stores.

Advanced Series

Advanced Series is rooted in Australia for supermarket refrigeration . Available in medium and low temperature models  for a variety of products .  a self contained supermarket refrigeration system  which greatly reduces expensive installation costs, once positioned in the store it simply connect to a standard power outlet.



Features:

• MEPS highest energy rating approval – QCR: 0018 :AS1731
• New Vu-Rite mullion-less glass doors
• Available in 2 door sizes –
  1800 * 900mm (available in 2/3/4/5/6 Door formats)
  1800 * 750mm (available in 3/4/5/6/7 Door formats)
• 6 levels of display (5 adjustable shelves and base tray)
• Heavy duty front bumper
• 100mm urethane insulation reduces heat leak and therefore operating costs
• Structural steel sub-frame with level adjustment allowing easy under case access and service connections
• TX valve (fitted)
• Digital thermostat control (fitted)
• LED lighting
• 5-door dairy case has a TEC of 965Watts per hour
• Plugs into a stanard 10/15amp G.P.O (case dependant)

Supermarket Freezer-Self-contained Medium Temperature

Ideal for dairy, produce, poultry, liquor

• MEPS highest energy rating approval – QCR: 0018 :AS1731
• New Vu-Rite mullion-less glass doors (patent pending)
• Available in four door sizes –
  1800 * 900mm
  1650 * 900mm
  1800 * 750mm
  1650 * 750mm
• 900mm doors available in 2 Door, 3 Door, and 4 Door, 5 Door, 6 Door formats
• 750mm doors available in 3 Door, 4 Door, 5 Door, 6 Door and 7 Door formats
• Five levels of display (4 adjustable shelves and base tray) for 1650mm Doors and 1 additional level for 1800mm Doors
• Heavy duty front bumper
• 100mm urethane insulation reduces heat leak and therefore operating costs
• Structural steel sub-frame with level adjustment allowing easy under case access and service connections
• TX valve (fitted)
• Digital thermostat control (fitted)
• LED lighting
• 5-door dairy casehas a TEC of 965Watts per hour
• Plugs into a stanard 10/15amp G.P.O (case dependant)
• Slimline door / Crystal door option

Technical Parameters:



Model		MT-750-4	MT-750-5	MT750-6	Patch End
Saturated Suction Temperature	℃	-4℃	-4℃	-4℃
Voltage		customized	customized	customized
Dimension	mm	3090*1080*2255	3855*1080*2255	4620*1080*2255	75
Display area	m²	4.659	5.823	6.99
Effective volume	m³	4.673	5.831	6.96
Refrigerant		R404A/R449A	R404A/R449A	R404A/R449A
